This device combines the advantages of a plate heat exchanger and a shell heat exchanger
Characteristics
The shell & plate heat exchanger is suitable for use at high pressures and temperatures without gasket replacement, so maintenance costs are minimized.
Structurally stable because no gasket is necessary, as the fluids difficult to seal with a rubber gasket, such as strong acid, alkalinity, or steam, are completely welded.
The required installation space is small and the device is very light, making the shell & tube heat exchanger easy to replace.

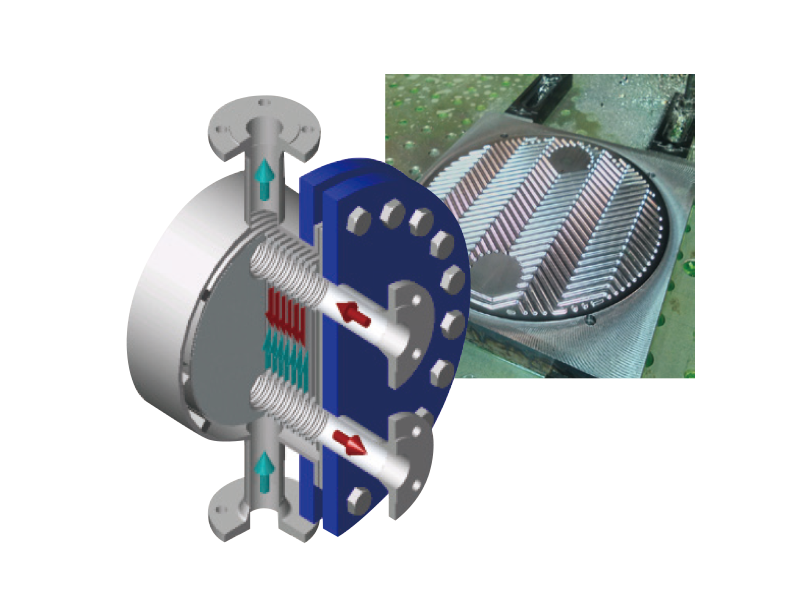

Since heat transfer is performed through a very thin transfer plate, hot and cold fluids mutually exchange heat through the channel formed by the heat transfer plate, making high heat exchange efficient.
l Structure

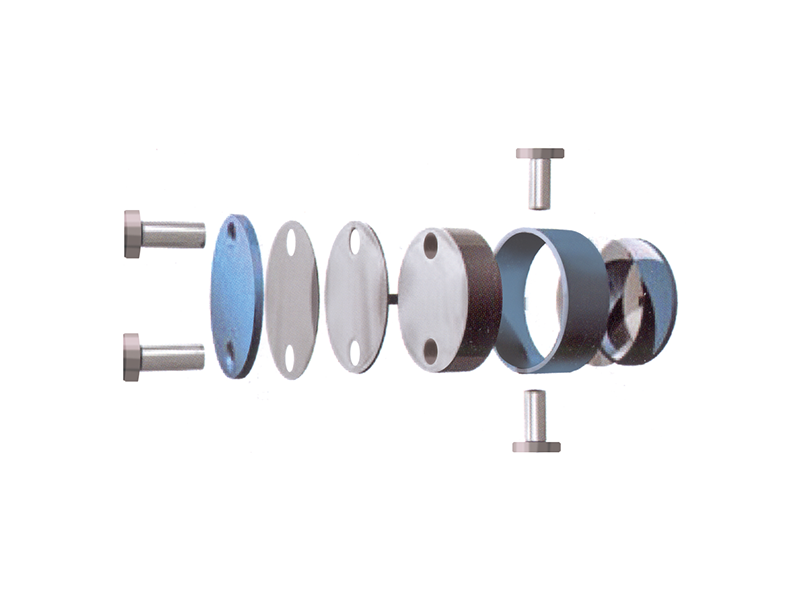

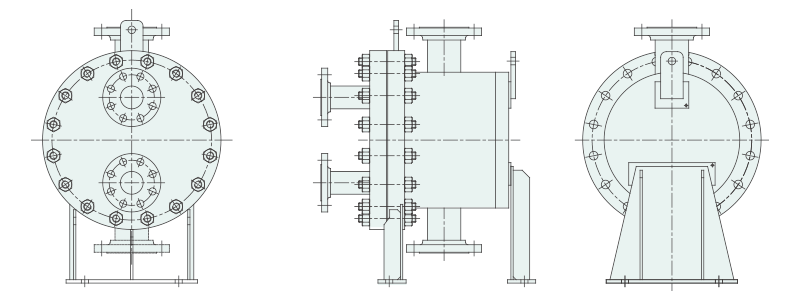

Plate pack, front and rear shell covers, connection part, lifting lug, stand
The shell & plate heat exchanger combines the plate heat exchanger’s high heat transfer efficiency and the tube heat exchanger’s high versatility. The heat exchanger can be applied to diverse purposes and situations through miniaturization based on high efficiency, high pressure-resistance, and highly reliable welding joints.
