Plate Heat Exchanger

Plate Heat Exchanger

Overview

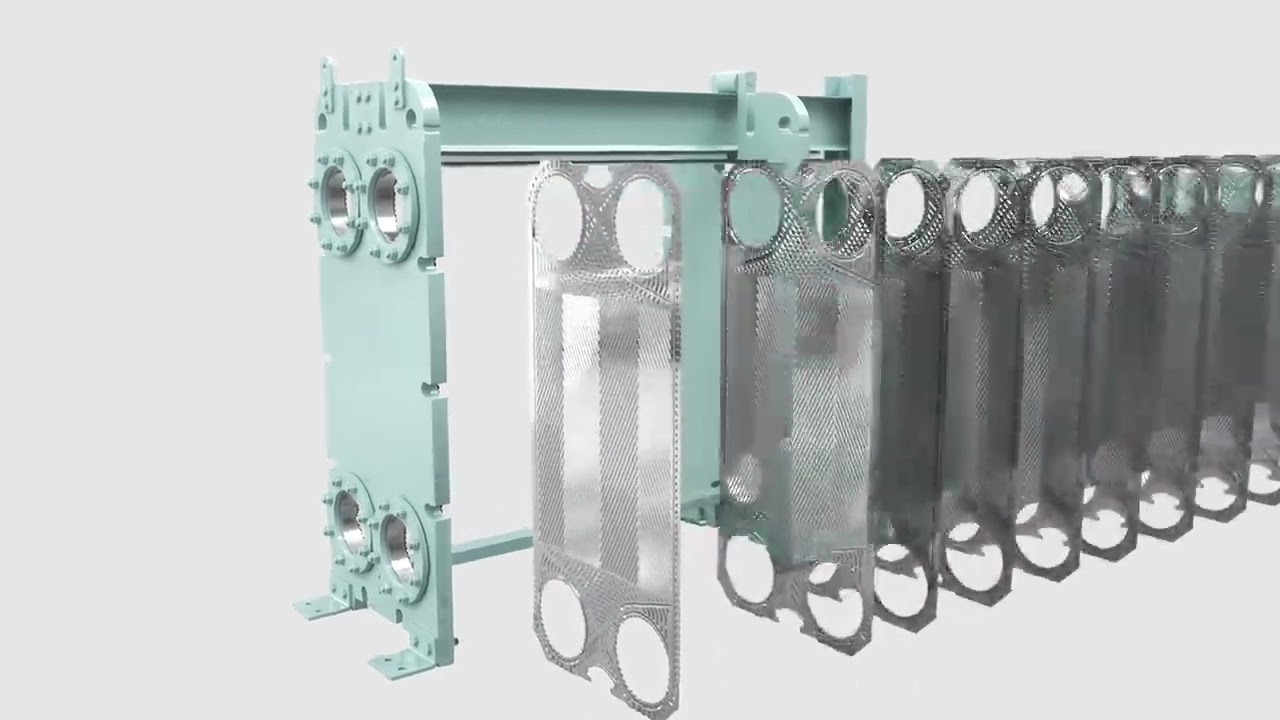

  • An airtight heat exchanger using a multi-plate structure and gasket that allows two or more fluid types to exchange heat without mixing
Characteristics
  1. Easy to disassemble and clean due to the bolted plate pack and frame structure
  2. Easy capacity change even within the fixed-size device
  3. Heat exchange is possible even with very low logarithmic temperature differences.
  4. The required space is very small compared with other plate type heat exchangers.
  5. The high turbulence created by the herringbone shape minimizes contamination of oil path.

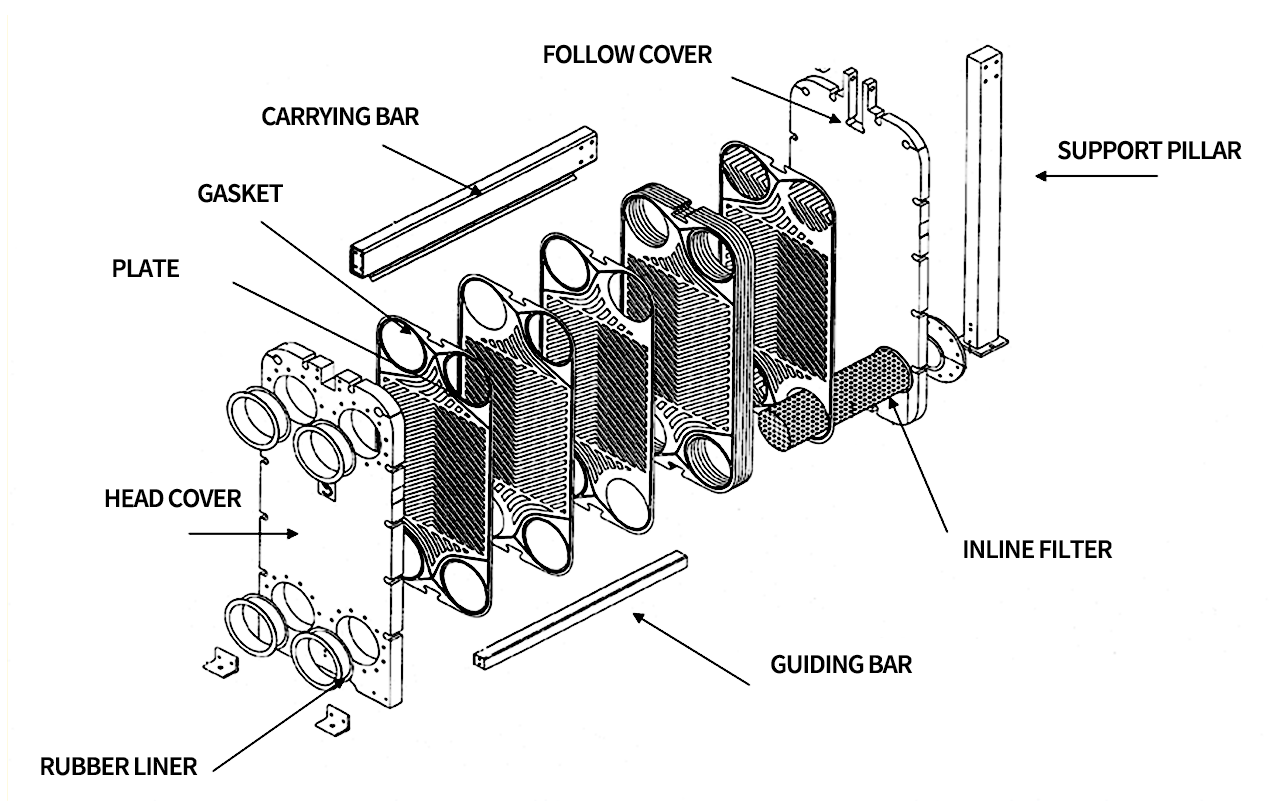

l Structure

l Application Fields

Shipbuilding

Central seawater cooler, engine lubricant cooler, glycol cooler

Chemical

Petroleum, paraffin, sulfuric acid, nucleic acid, ethanol

Food

Milk, juice, beer,
alcoholic beverages, cooking oil

HVAC

Ice thermal storage, district heating

STEEL

Mold cooling, cooling
of continuous casting process, emulsion, hydraulic oil cooling, heat recovery of washing water

Power Plant

Nuclear power, thermal power, collective energy facility

Freezing

Evaporator, condenser,
heat recovery

Electrical and electronic

Data center, net processing
of high-frequency heat treatment cooling

l Work Conditions
DescriptionSpecifications
Heat transfer area (m²/set)11 ~ 3,000
Design temperature (˚C)-35 - 2001
Design pressure (barg)Full vacuum - 26
Application codeASME, KS, JIS, PED
l Materials
ApplicationMaterials
Heat transfer plateStainless steelS,5304. SS316L, 254SMO, 904L
NickelNI.200
Nickel alloyC-276., 825, 625.Incooy
TitaniumTi.Gr.1, Ti. Gr.11
GasketNER, EPDM, Neoprene, IlR. Butyls Silicone, Teflon, Viton
